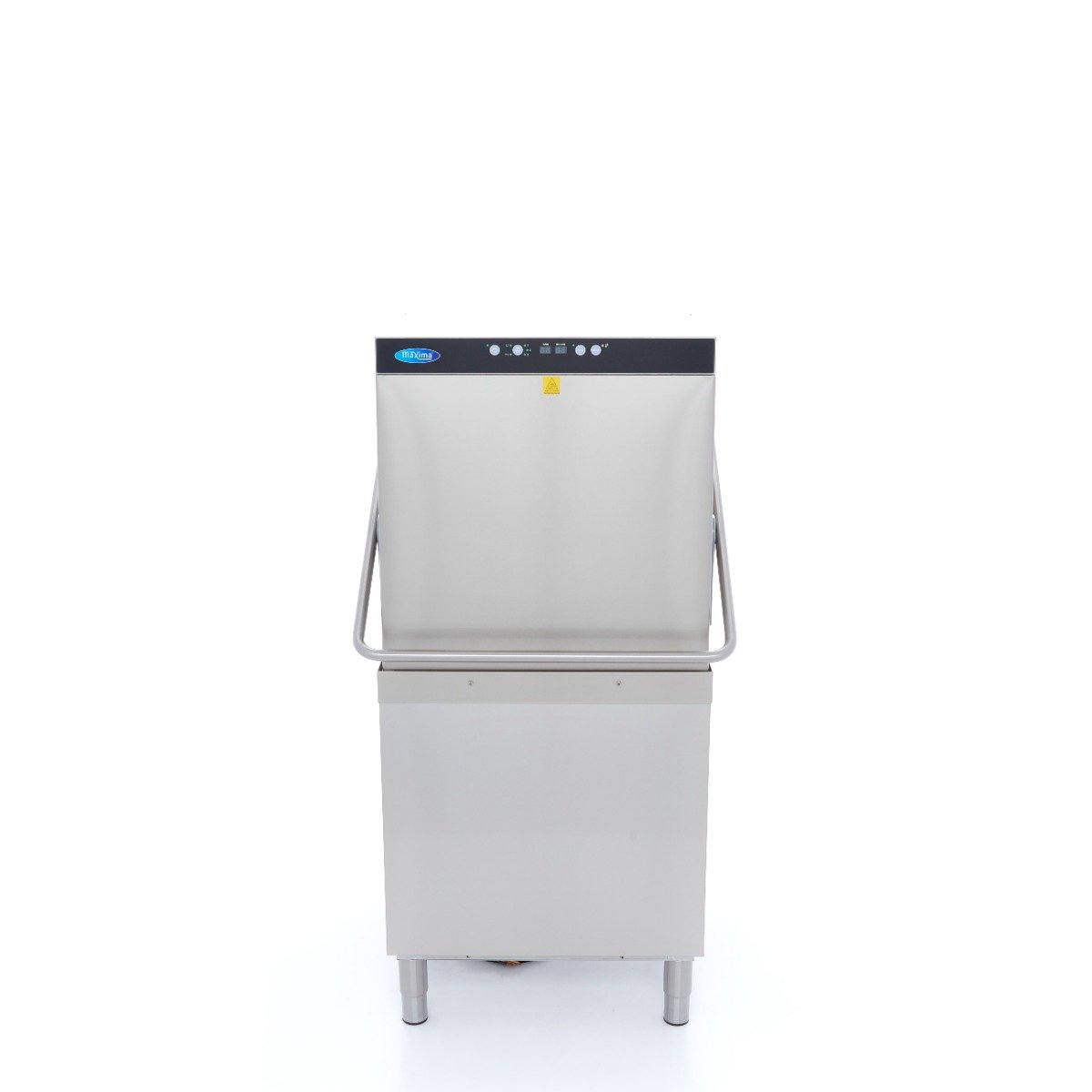

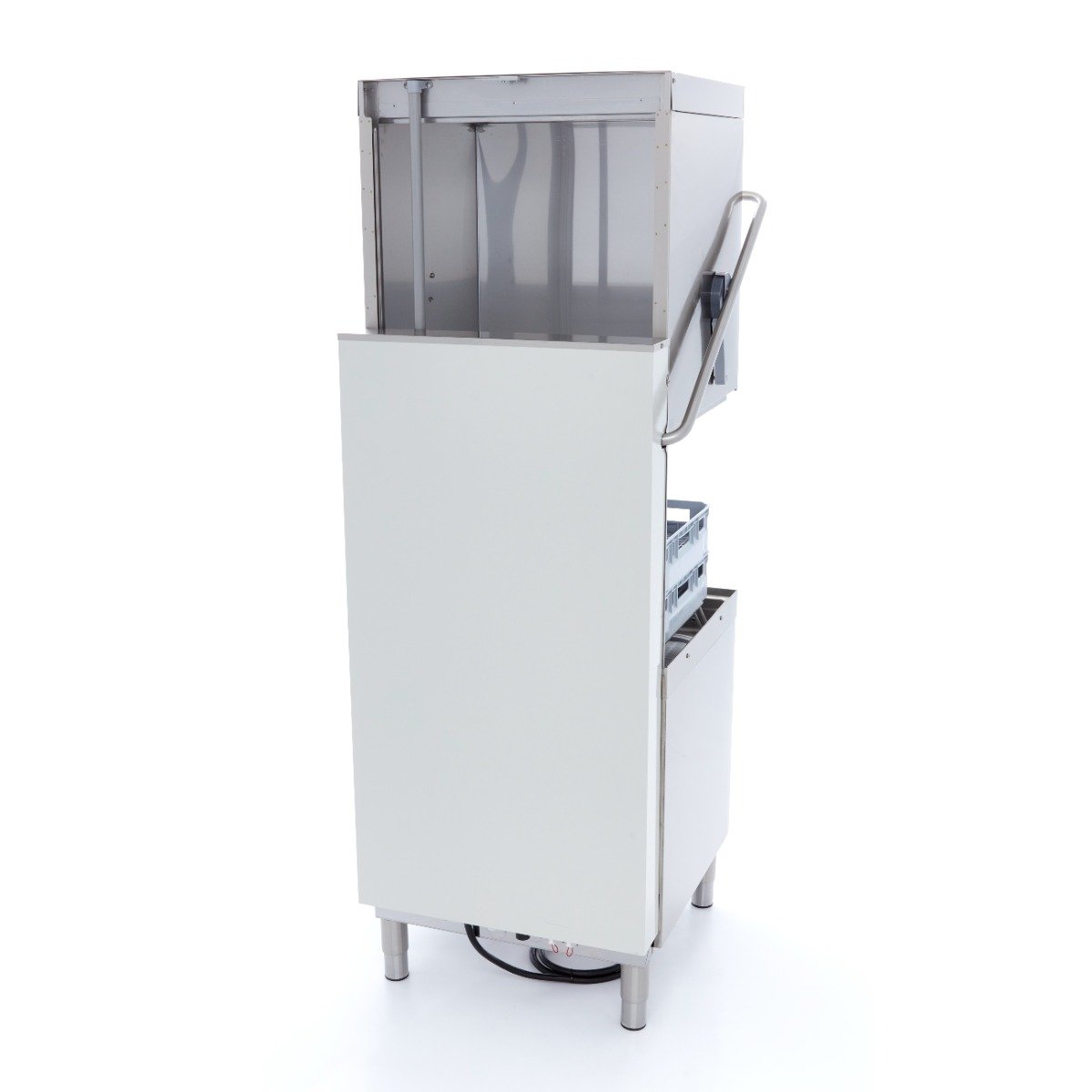

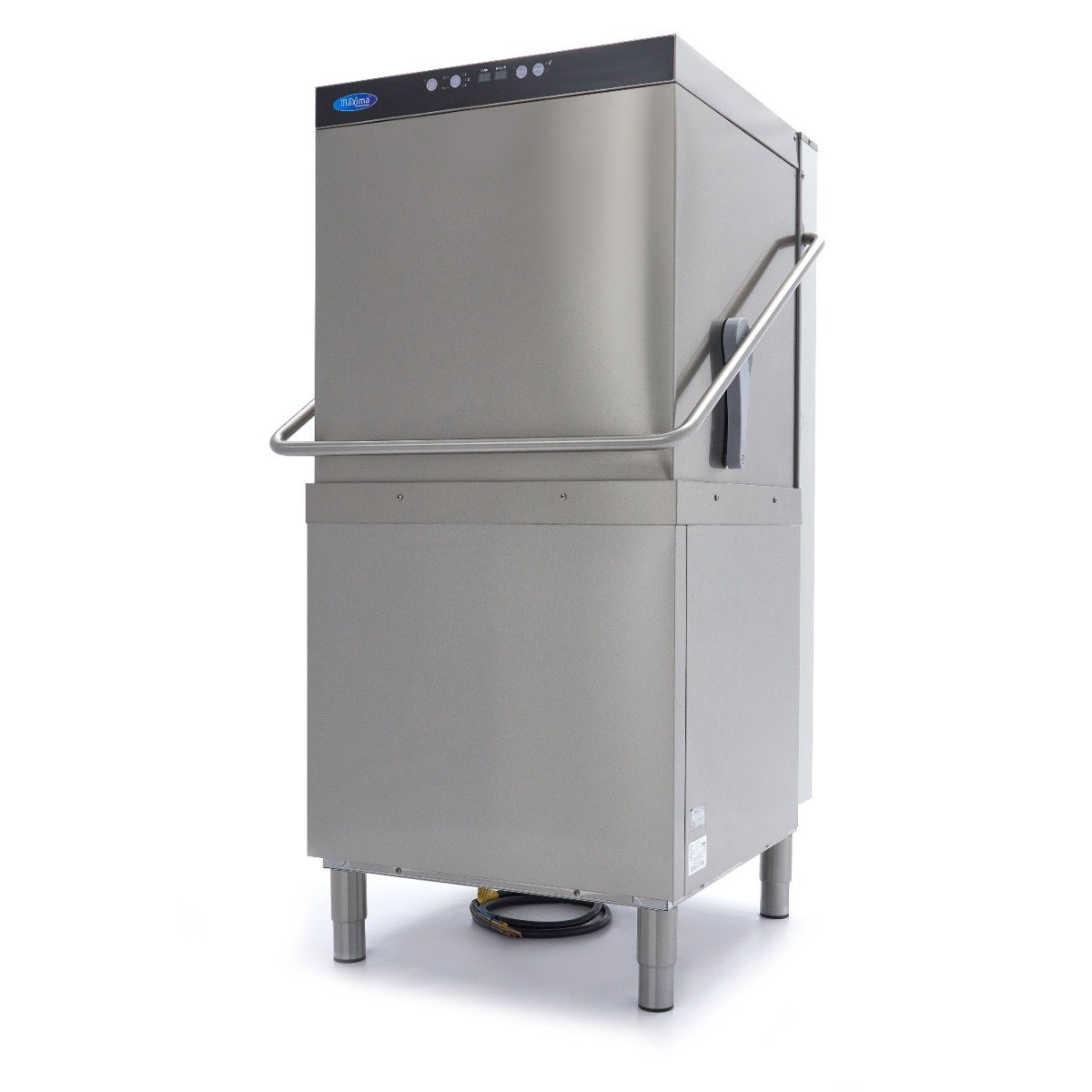

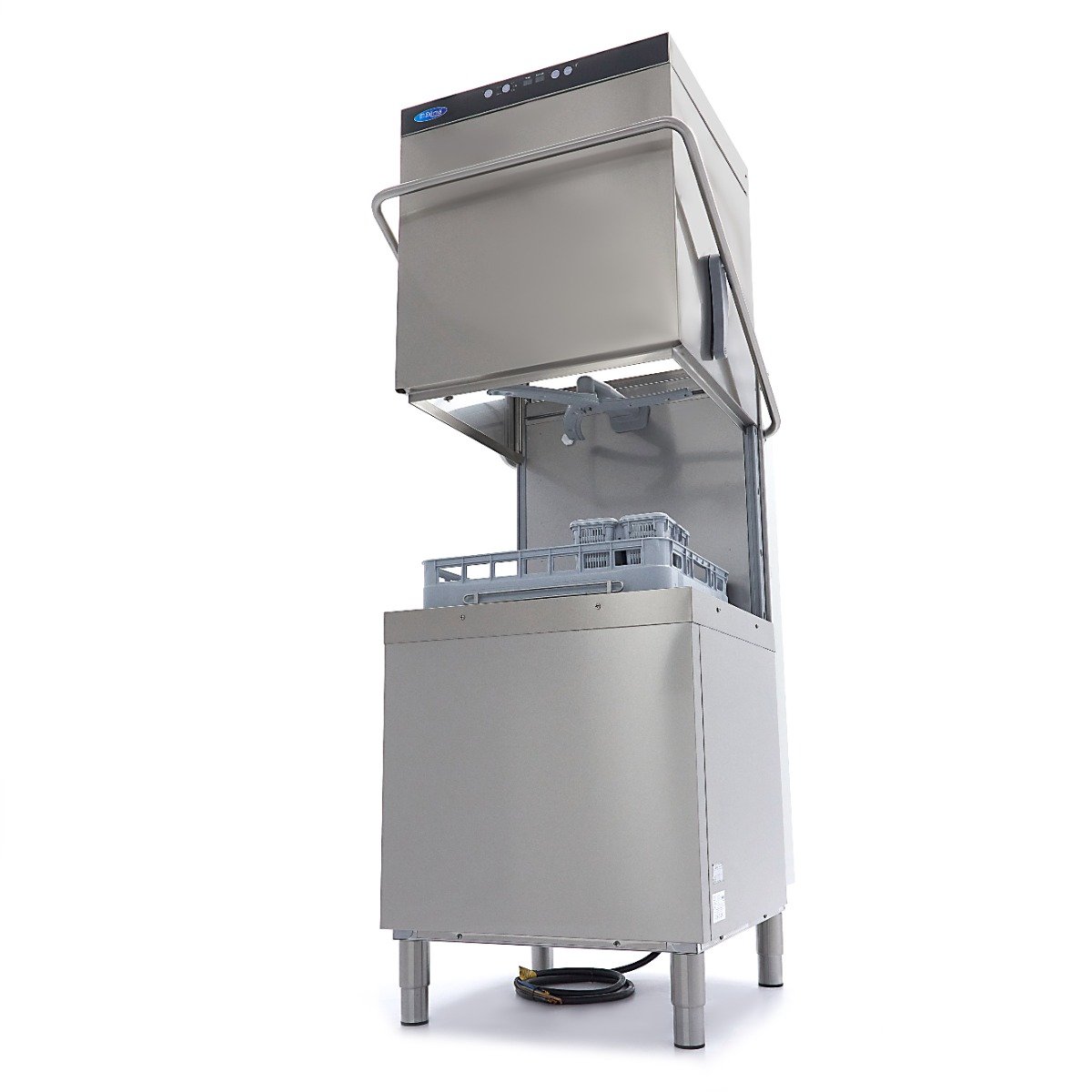

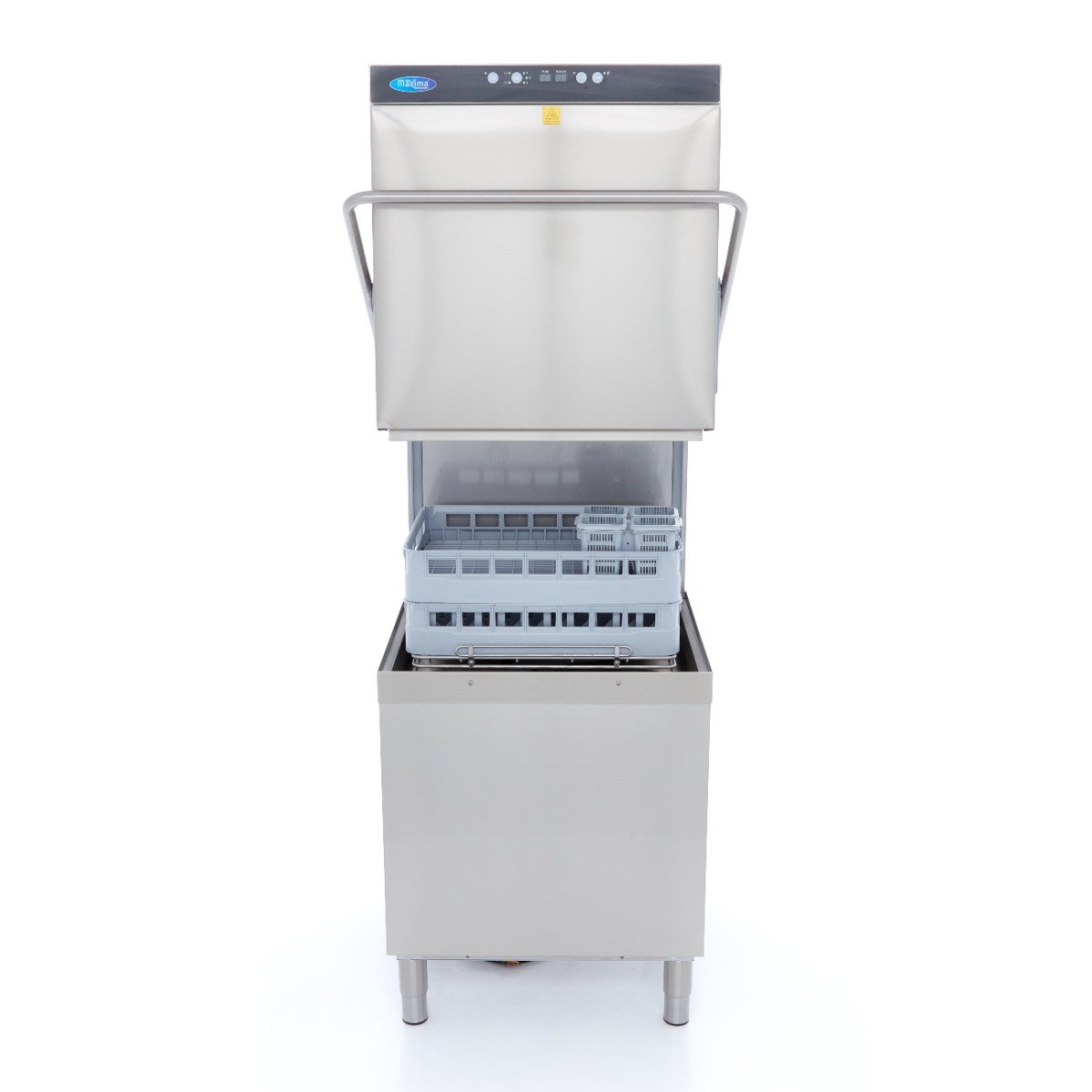

Pass Through Dishwasher – 50x60cm – With Rinse Aid and Soap Pumps – 400V

In big catering establishments that work with large quantities of dirty dishes, this pass through dishwasher is a big asset. You can pass the baskets through quickly, so the handling of the dishes is very efficient. This professional machine has three wash programmes: 60, 120 and 150 seconds each. The wash temperature is 60°C and the rinse cycle is 80°C, which helps everything dry faster. It’s also a very quiet machine, operating at less than 65dB. This dishwasher only uses 2,4L of water per cycle. It has a control panel that is IPX4 protected, so water can’t get behind the easy-to-use buttons. It includes four buttons: an On/Off button, a button to Start/Stop the washing cycle, a button to set the washing programme and a button to start the drain pump. This dishwasher also comes with temperature and rinse indicators.

Ideal for use in dishwashing line

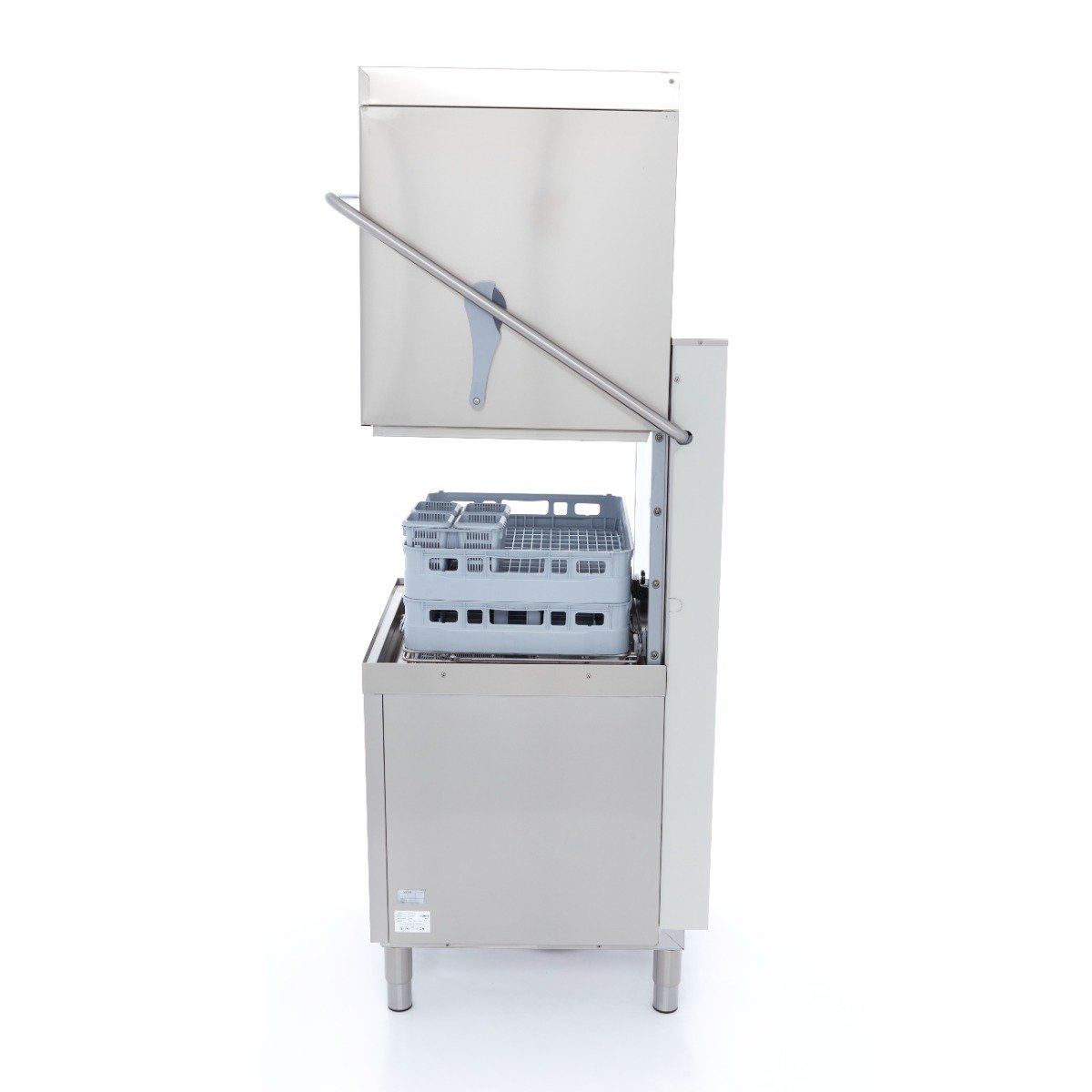

An advantage of buying this professional pass through dishwasher is that you can connect it to a stainless steel dishwasher table for pre-rinsing, creating a smooth workflow from pre-rinse to drying. Both the appliance and our dishwasher tables come with adjustable feet to create the perfect working height. With this set-up, dirty dishes are cleaned quickly and easily. To start, place all the dishes in the dishwasher basket and rinse with a pre-rinse shower. Then, push the basket through to the dishwasher. When the washing programme is finished, slide the basket onto a draining table and let the dishes dry off. This machine is also suitable for a corner installation. The following accessories have been included: a 50 x 60cm glasses basket, a 50 x 60cm plate basket, a cutlery basket, guides for washing table, and a supply and drain hose to connect the appliance to the water supply.

Easy-to-clean dishwasher

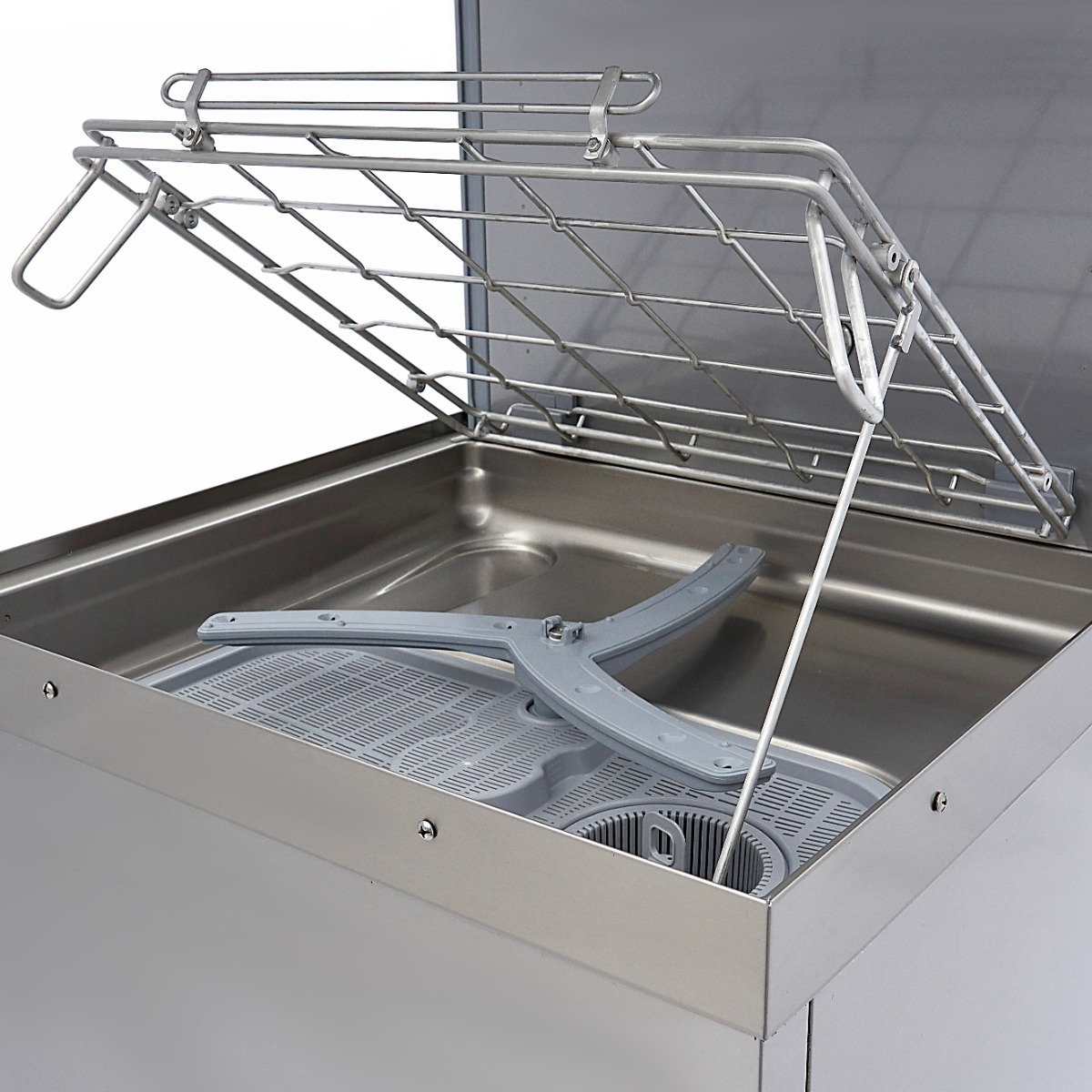

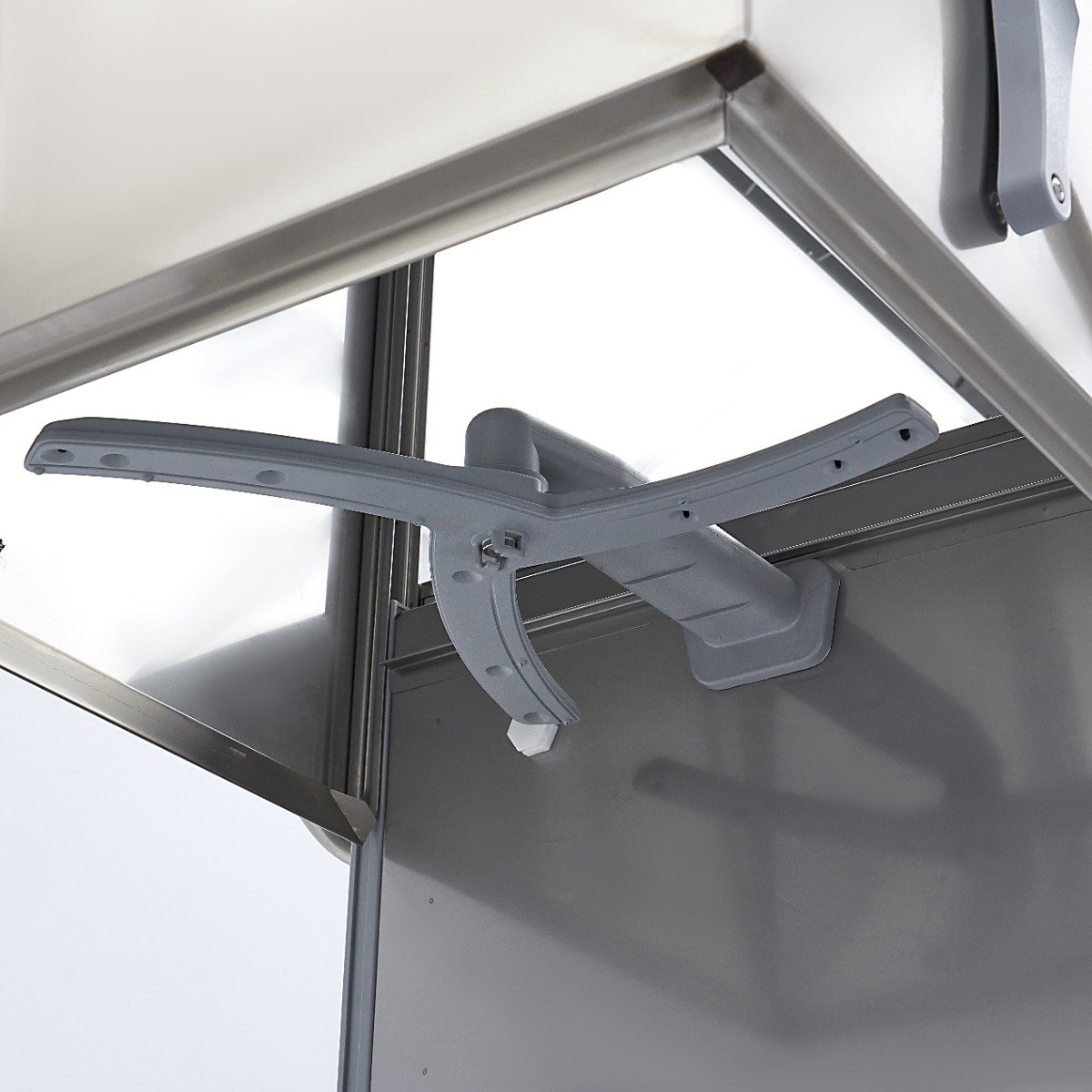

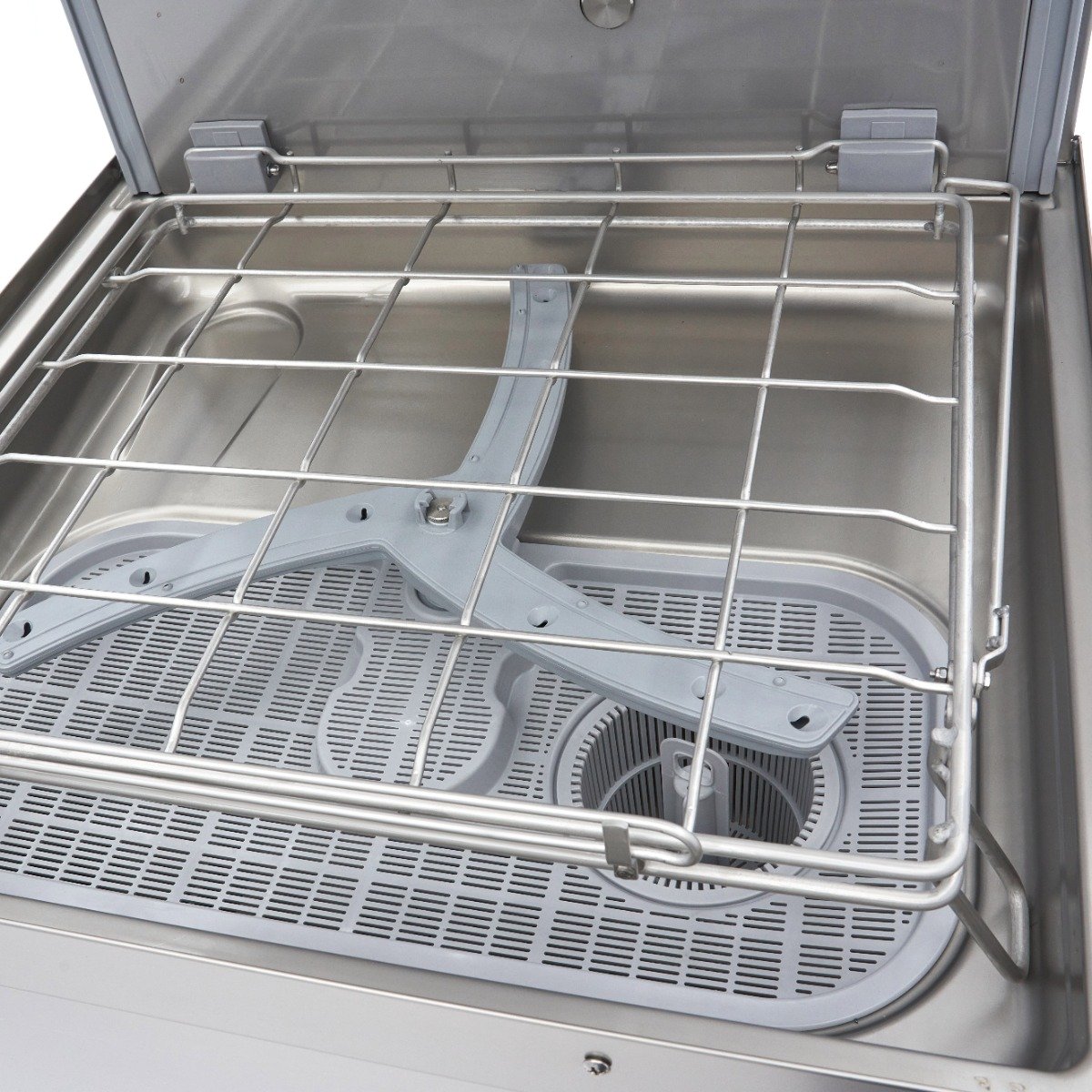

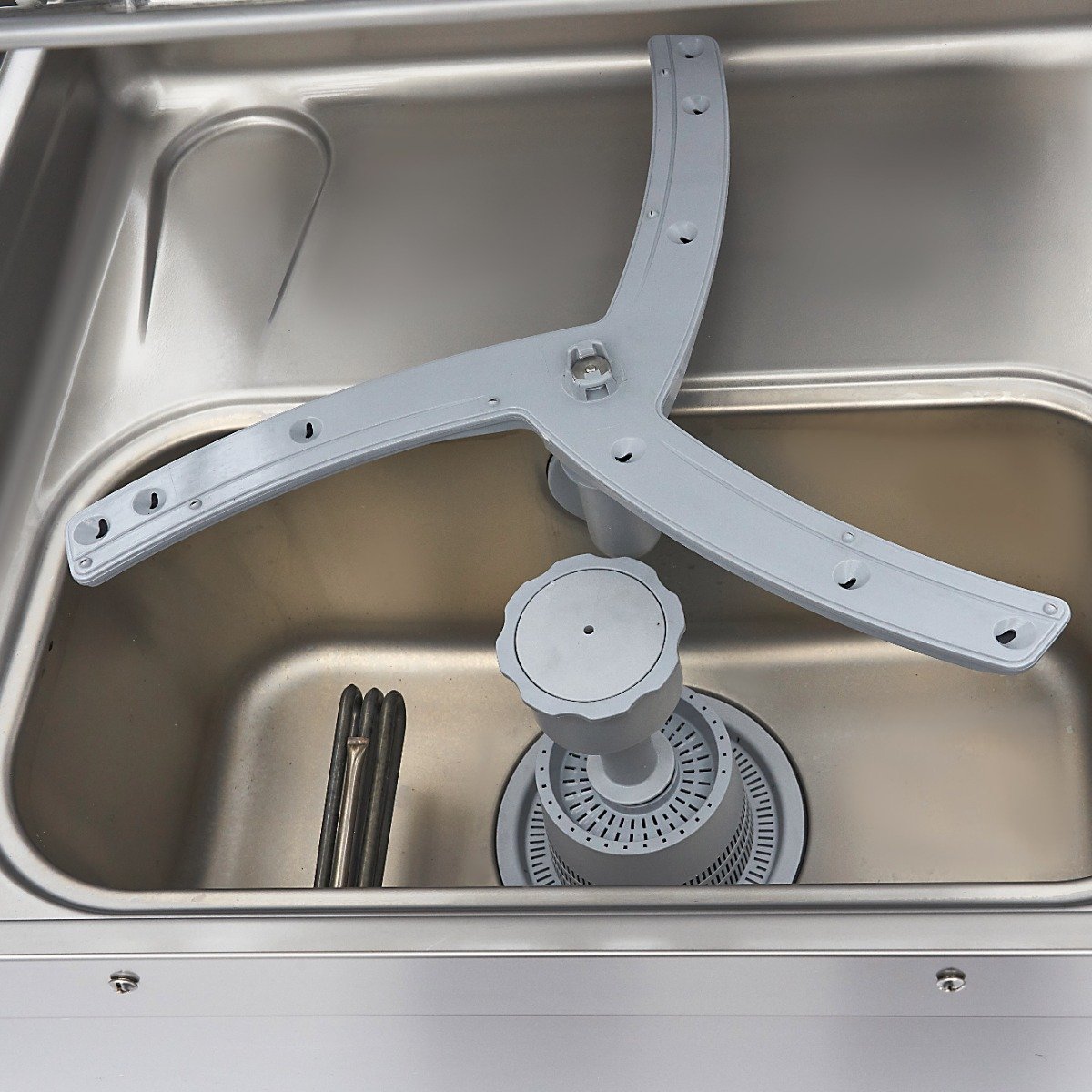

The pass through dishwasher has been made entirely from stainless steel, which makes it very quick and easy to clean. The smooth surfaces can be wiped down with a damp cloth. The wash arms on the inside are made from special ABS and can be cleaned with a cloth and water. The dishwasher is equipped with rinse aid and soap pumps. It is important to note that the rinse aid and soap pumps can only take liquid detergent. No drain pump is included because the water runs off naturally.

Features

• Quiet machine at less than 65dB
• Rinse temperature of 80°C for quick drying
• Complete wash programmes within 60, 120 and 150 seconds
• Water consumption per cycle is only 2,4L
• Includes rinse aid and soap pumps

Product specifications

• Net weight: 100kg
• Tank capacity: 30L
• Boiler capacity: 6L
• Closed dimensions: W80 x D84 x H154cm
• Open dimensions: W80 x D84 x H200cm
• Door height: 46,5cm (max. glass/plate height 45cm)
• Max. height dishwasher tables: 83-86cm
• Tank element: 3,0kW
• Boiler element: 8,0kW
• Washing pump: 0,6kW
• 400V / 50Hz / 3 Phase 9500W

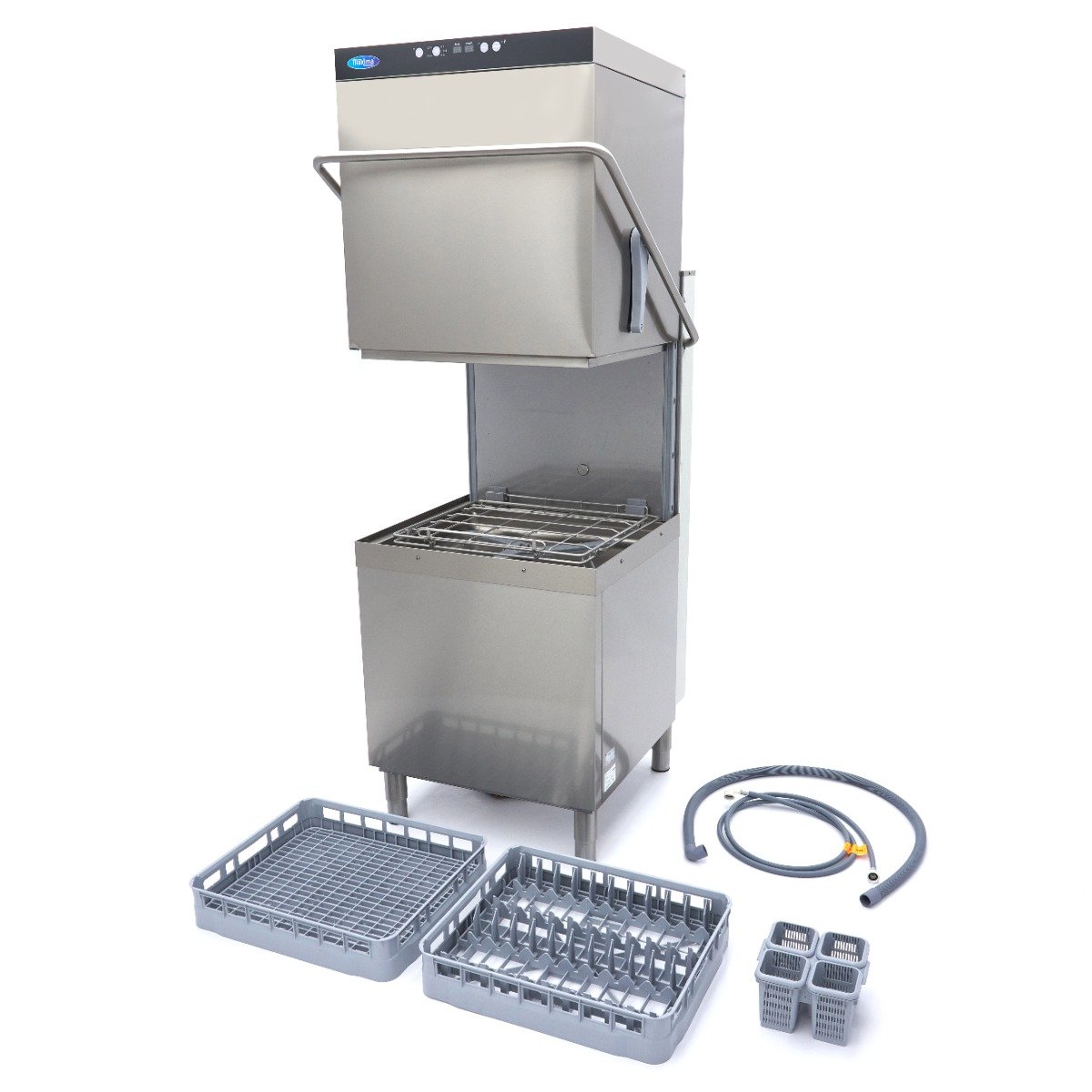

Included

• Supply hose
• Drain hose
• One cutlery basket
• One plates basket (50 x 60cm)
• One glass basket (50 x 60cm)
• Guides for washing table
